X20SLX806 B&R Safety relay module

Description

X20SLX806 B&R Safety relay module

Product Dimensions：

Product Description

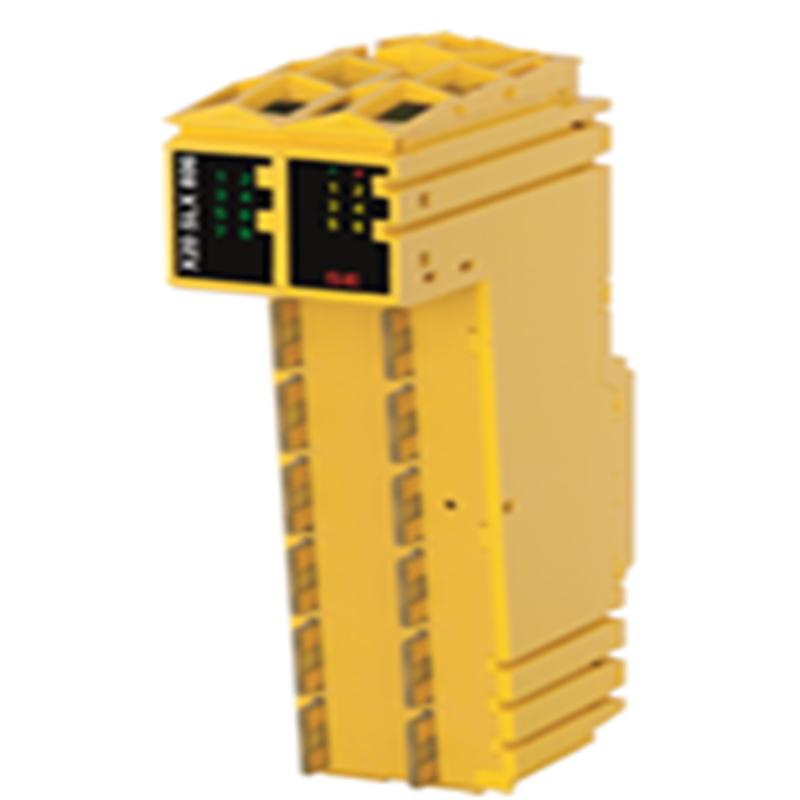

The B&R X20SLX806 is a safety relay module for the B&R X20 system, a modular and expandable automation platform. This module is designed to integrate safety functions into a standard automation environment, allowing for the safe control of high-power loads. It features integrated relay outputs, which are used to switch higher voltages or currents than a typical digital output can handle.

Key specifications for the X20SLX806 module include:

• Function: Safety relay output module
• Outputs: 2 safe relay outputs
• Switching Capacity: Capable of switching up to 230 VAC at 5 A
• Safety Features:
  • Fail-safe: The module is designed to move to a safe state if a fault occurs.
  • Feedback loop monitoring: It can monitor the status of connected safety devices to ensure they are functioning correctly.
  • Current monitoring: It can detect open circuits or other faults in the wiring.
• Safety Classification: Certified for applications up to SIL3 (Safety Integrity Level 3) or PL e / Cat. 4 (Performance Level e / Category 4), meeting stringent safety standards (e.g., EN ISO 13849-1, IEC 61508).
• Supply Voltage: 24 VDC
• Operating Temperature: 0 to 60°C
• Certifications: Includes various international certifications such as ATEX, cULus FSPC, and others, confirming its suitability for a range of demanding industrial environments.

Advantages

The B&R X20SLX806 provides significant benefits for safety-critical applications:

• High-Power Switching: The integrated relays allow the module to directly switch high-voltage and high-current loads, eliminating the need for external, separate relays and simplifying wiring.
• Integrated Safety: As a safety-certified component of the X20 system, it seamlessly integrates safety functions into the standard automation architecture, making it easier to build a comprehensive and reliable safety solution.
• Enhanced Diagnostics: The module provides extensive diagnostic information, allowing for quick fault detection and troubleshooting. This reduces machine downtime and simplifies maintenance.
• Modularity: The X20 system’s design allows for flexible expansion. You can easily add more safety or standard I/O modules to the system as your application’s needs grow.
• Robust and Reliable: Built for industrial use, the module’s design and certifications ensure its durability and long-term reliability in harsh operating conditions.

Precautions

To ensure the safe and proper operation of the B&R X20SLX806 module, please consider these precautions:

• Read the Manual: Always consult the official B&R user manual for the X20 system and the X20SLX806 module. The manual contains critical safety instructions, technical details, and wiring diagrams.
• Qualified Personnel: Only trained and qualified personnel should install, configure, and maintain the safety system. Improper handling can compromise safety and lead to accidents.
• Correct Wiring: Pay close attention to the wiring diagrams provided in the manual. Incorrect wiring of high-voltage and high-current circuits can be extremely dangerous and can damage the module.
• Safety System Validation: After installation and configuration, a thorough test and validation of the entire safety circuit is mandatory to confirm it functions as intended and meets the required safety performance level.
• Electrical Safety: When working with the module, particularly the relay outputs, always ensure power is disconnected to prevent electric shock. The module’s outputs are capable of switching lethal voltages.

Applications

The B&R X20SLX806 is a versatile component for industrial automation, particularly where safety and the control of higher-power loads are required. Typical applications include:

• Control of Safety-Related Drives: Safely switching the power to motors and other actuators in machinery.
• Emergency Shutdowns: Used as part of an emergency stop circuit to safely disconnect the power to critical machinery components.
• Actuator Control: Controlling high-power actuators, solenoids, or other devices that require a higher current or voltage than standard I/O can provide.
• Safety Interlock Circuits: Activating and deactivating safety interlocks for machine guards, doors, and fences.
• Process Industry: Implementing safety functions in process control systems, such as in chemical plants or refineries, where reliable and safe switching is crucial.
