XM06B5 ABB Expansion module

Description

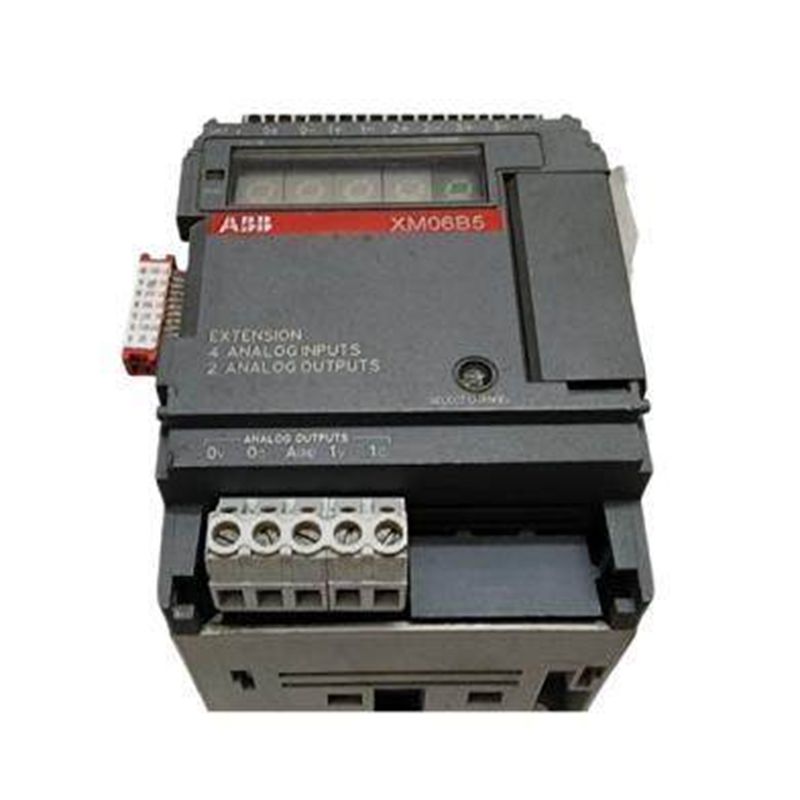

XM06B5 ABB Expansion module

Product Dimensions：

Product Overview

The ABB XM06B5 is a compact and robust module that provides additional analog I/O points for your ABB AC31 PLC. It typically features configurable inputs and outputs, allowing it to adapt to various industrial applications. This module is essential for systems requiring precise measurement and control of analog signals such as temperature, pressure, flow, and voltage.

Product Parameters

Here are the general parameters for the ABB XM06B5:

• Brand: ABB
• Model: XM06B5 / XM-06-B5 (Part Number: 1SBP260103R1001)
• Inputs: 4 configurable analog inputs. These can typically handle:
  • Current signals
  • Voltage signals
  • Temperature signals (e.g., Pt100, Pt1000, NI1000, Balco500)
• Outputs: 2 configurable analog outputs. These typically provide:
  • Voltage outputs (e.g., +/-10V DC)
  • Current outputs (e.g., 0.25mA DC)
• Resolution: 12 bits
• Compatibility: Specifically designed for ABB AC31 PLC Series 40/50.
• Mounting: DIN rail mountable (IEC 60715 compliant, e.g., TH35-15 or TH35-7.5).
• Dimensions (HxWxD): Approximately 93 x 65 x 85 mm
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +75°C
• Maximum Operating Altitude: Up to 2000 meters
• Certifications: DNV, GL, LR (for industrial use)

Product Advantages

• Expanded I/O Capability: Significantly increases the number of analog inputs and outputs available to your AC31 PLC, allowing for more comprehensive control and monitoring.
• Flexibility: Configurable inputs and outputs support a wide range of analog signal types (voltage, current, temperature sensors), making it versatile for various applications.
• High Resolution: 12-bit resolution ensures precise measurement and control of analog signals, crucial for applications requiring accuracy.
• Seamless Integration: Designed to integrate seamlessly with ABB AC31 PLC systems, simplifying installation and programming.
• Robust Design: Built for industrial environments, offering durability and reliable performance in demanding conditions.
• Space-Saving: Compact DIN rail mountable design helps optimize space within control cabinets.

Precautions

When installing and operating the ABB XM06B5, consider the following precautions:

• Signal Isolation: To minimize interference, cables carrying low-voltage analog signals should not be run in the same conduit or sleeve as power cables (230 V a.c.).
• Shielded Cables: Always use shielded cables for analog signals to reduce electromagnetic interference (EMI) and ensure signal integrity.
• Power Supply: Ensure the correct power supply voltage (24 V d.c.) for the module and its associated components.
• DIP Switches: If the module has DIP switches, consult the documentation for proper configuration, as some switches might be without functionality depending on the specific model or input configuration (e.g., selecting between voltage/Pt100/Pt1000 or current for inputs).
• Compatibility: Verify that the XM06B5 is compatible with your specific AC31 basic unit series (40 or 50).
• Installation Environment: Adhere to the specified operating temperature and humidity ranges to ensure optimal performance and longevity.
• Proper Mounting: Securely mount the module on a DIN rail according to IEC 60715 standards.
• Qualified Personnel: Installation and maintenance should only be performed by qualified personnel familiar with industrial control systems and electrical safety procedures.
• Warranty Voidance: Tampering, unauthorized repairs, use of incorrect voltage, or non-genuine parts can void the product warranty.

Product Applications

The ABB XM06B5 is widely used in various industrial automation and control applications where precise analog measurement and control are required. Some common applications include:

• Process Control: Monitoring and controlling variables like temperature, pressure, flow, and level in chemical plants, food and beverage processing, and water treatment facilities.
• Building Automation: Managing HVAC systems, lighting, and environmental controls in commercial and industrial buildings.
• Machine Control: Integrating analog sensors for feedback and control in various machinery, such as robotic systems, packaging machines, and material handling equipment.
• Energy Management: Monitoring energy consumption, power quality, and controlling energy distribution systems.
• Test and Measurement: Providing analog I/O for data acquisition and control in testing and laboratory environments.
• Renewable Energy: Used in solar power systems, wind turbines, and other renewable energy applications for monitoring and control.
