XNX-AMSI-NNNNN Honeywell XNX Universal Transmitter

Description

XNX-AMSI-NNNNN Honeywell XNX Universal Transmitter

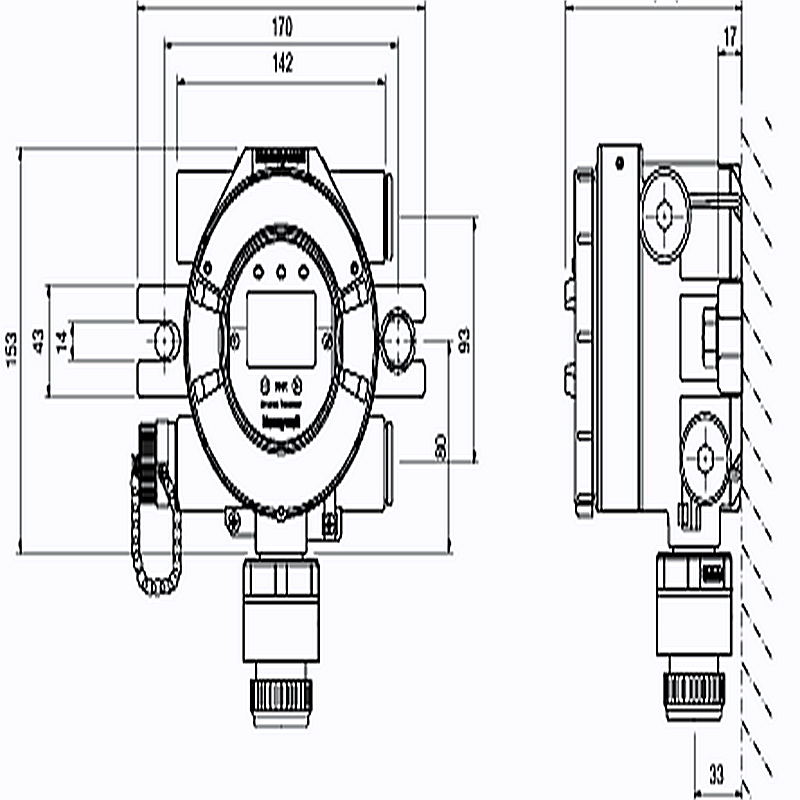

Product Dimensions：

Product Description

The Honeywell XNX-AMSI-NNNNN is a Universal Gas Transmitter that serves as a central interface for fixed gas detection systems. It is part of the XNX series and is designed to provide a flexible and reliable platform for connecting a wide range of Honeywell Analytics gas sensors. Its primary function is to receive signals from these sensors and convert them into a standard output, allowing them to be integrated into a larger control system or safety management platform. This specific part number indicates a configuration with an ATEX/IECEx approved, stainless steel enclosure, and a 4-20mA input for a sensor.

Product Parameters

• Model Name: XNX Universal Transmitter
• Part Number: XNX-AMSI-NNNNN
• Enclosure: Stainless Steel 316
• Agency Approvals: ATEX/IECEx
• Port Threads: M25
• Sensor Personality: Configured for Infrared (Optima/Excel) or 4-20mA input (Sensepoint, etc.)
• Output: 4-20mA with HART as standard
• Display: Easy-to-read, multilingual backlit LCD
• Operating Temperature: -40°C to +65°C (-40°F to +150°F) (sensor-dependent)
• Ingress Protection: IP66 and NEMA 4X rated
• Power Supply: 24 VDC (typical)
• Material: Painted stainless steel 316

Product Advantages

• Universal Platform: The XNX transmitter is designed to be a “one-size-fits-all” solution. It is compatible with a broad range of Honeywell gas sensors, including electrochemical, infrared, and catalytic bead technologies, reducing the need for multiple types of transmitters.
• Robust and Durable: With its stainless steel enclosure and an IP66/NEMA 4X rating, the XNX is built to withstand harsh industrial and offshore environments, providing long-term reliability and protection against dust, water, and corrosion.
• Easy to Use: The large, backlit LCD display and non-intrusive magnetic switches allow for easy configuration and calibration without having to open the enclosure. This simplifies maintenance and reduces the need for hot work permits in hazardous areas.
• Flexible Communications: The transmitter comes standard with 4-20mA and HART communications, making it easy to integrate into existing industrial control systems. Optional modules are available for Modbus, Fieldbus, and up to three relays, providing even greater flexibility.

Precautions

• Professional Installation: Due to the hazardous nature of the applications it’s used in, the XNX transmitter must be installed, configured, and maintained by qualified and trained personnel in accordance with all local, national, and international safety codes.
• Sensor Compatibility: While the transmitter is universal, it must be properly configured for the specific sensor technology you are using (e.g., infrared, electrochemical).
• Power and Grounding: The device must be properly earthed/grounded for electrical safety and to minimize the risk of radio frequency interference. Ensure the power supply is stable and within the specified voltage range.
• Hazardous Areas: Never open the XNX enclosure in a hazardous area unless the power is disconnected, and the area is known to be non-hazardous.

Product Applications

The Honeywell XNX-AMSI-NNNNN is used in a wide variety of industries where the reliable detection of flammable, toxic, and oxygen-depleting gases is critical for safety. Common applications include:

• Oil and Gas: Onshore and offshore drilling rigs, refineries, and petrochemical plants for detecting flammable gases (LEL) and toxic gases like H2S.
• Chemical Plants: Monitoring for a variety of toxic and combustible gases in a chemical processing environment.
• Water and Wastewater Treatment: Detecting hazardous gases like hydrogen sulfide and methane that can build up in treatment facilities.
• Power Generation: Ensuring safety in areas where combustible gases may be present, such as around generators or fuel storage areas.
