YM22PBV2 Wenglor Digital input module

Description

YM22PBV2 Wenglor Digital input module

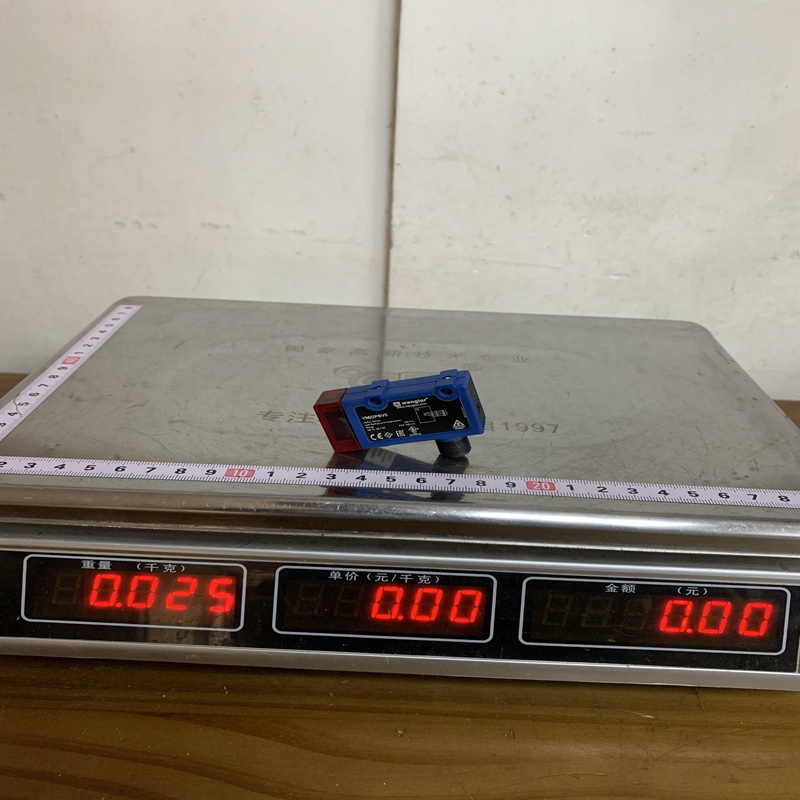

Product Dimensions：

Product Description

The Wenglor YM22PBV2 is a high-performance Reflex Mode Sensor with Background Suppression. Wenglor is renowned for its precision optoelectronics, and the YM series is specifically designed to detect objects accurately regardless of their color, shape, or surface properties, while effectively ignoring the background.

Product Parameters

Key Product Advantages

• Superior Background Suppression: The sensor uses triangulation technology, meaning it measures the angle of the returning light rather than just intensity. This allows it to detect a black object in front of a white background with extreme precision.

• Color Independent: It is highly reliable at detecting objects of different colors at the same distance, which is a common challenge for standard diffuse sensors.

• Compact Design: The small housing allows for installation in tight spaces where larger industrial sensors cannot fit.

• High-Speed Processing: A switching frequency of 1,000 Hz ensures it can handle high-speed production lines without missing targets.

• Visible Red Light: The visible beam makes alignment during installation quick and easy, without needing infrared viewers.

Product Applications

• Packaging Industry: Detecting the presence of small boxes or containers on a conveyor belt while ignoring the metal frame of the belt itself.

• Electronics Assembly: Presence detection of PCBs (Printed Circuit Boards) or small components during pick-and-place operations.

• Material Handling: Identifying objects on a tray or carrier where the background (the tray) must not trigger the sensor.

• Pharmaceuticals: Detecting small vials or blister packs on high-speed filling lines.

Important Usage Notes (Precautions)

• Alignment: For the best results, the light spot should hit the object at a 90° angle. If the object is highly reflective or tilted, the sensing range might fluctuate.

• Adjustment: Use the integrated potentiometer to set the sensing distance. Turn it until the yellow LED switches when the object is present, then verify that the sensor does not trigger when the object is removed and only the background is visible.

• Cleaning: The optical lens is made of plastic. Use a soft, lint-free cloth with water or mild soap. Never use aggressive chemicals or alcohol-based cleaners that could cloud the plastic lens.

• Wiring: Ensure the supply voltage is stable within the 10–30V range. Since this is a PNP output, the load must be connected between the output wire (Black) and the Negative/Ground (Blue).

Status Indicators

• Green LED: Operating voltage is applied (Power On).

• Yellow LED: Switching output active (Object detected).
